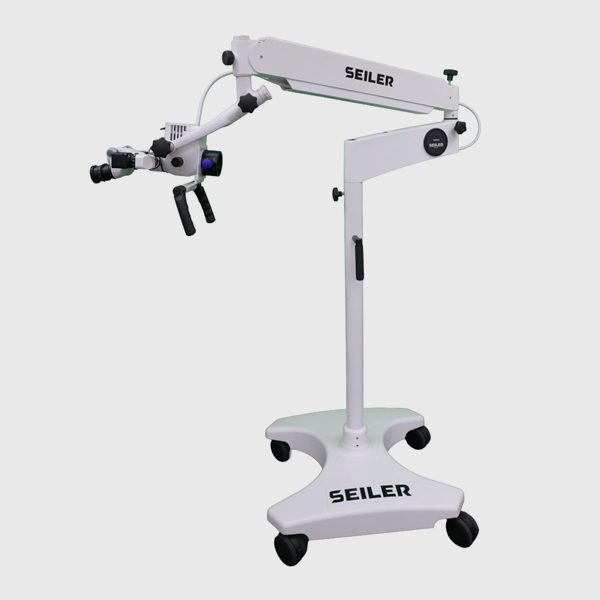

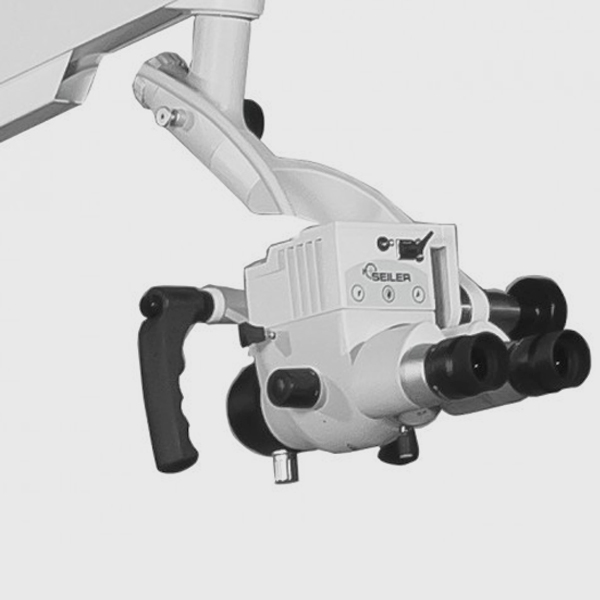

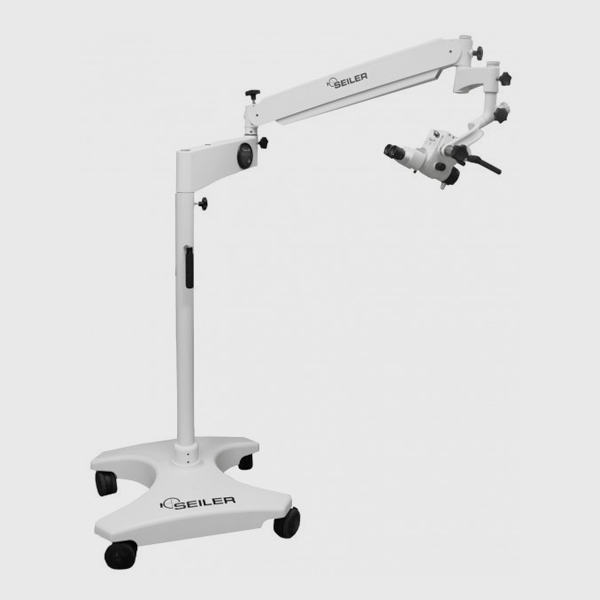

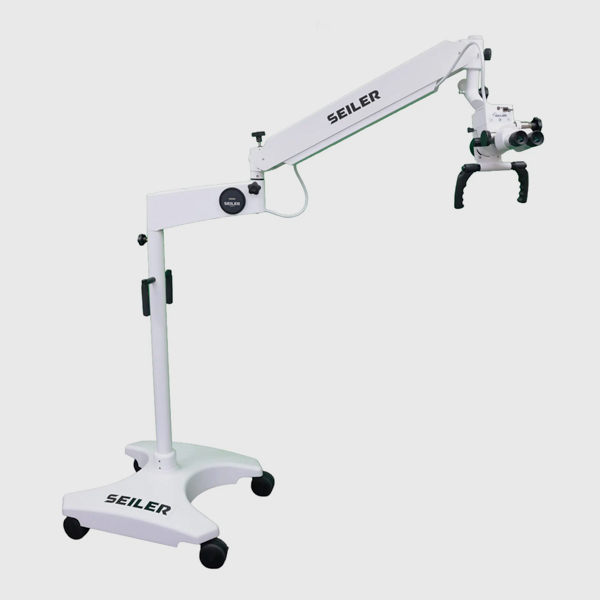

Seiler Alpha Air 3 ENT Microscope (New) - SALE!
Limited Stock With Limited Time Offer!
$9315.23$6426.14
The Seiler Alpha Air 3 ENT Microscope is a high quality ENT microscope with three levels of magnification, apochromatic lenses for superior optics, standard 150,000 LUX LED illumination and a specially engineered Gas Piston Pantographic Arm for superior maneuverability.
Warranty: Lifetime - Optics and Mechanics.
The Seiler Alpha Air 3 ENT Microscope is a multi-purpose, extremely powerful microscope. It uses high quality German optics and the brightest standard LED light source on the market. The Air 3 has a compact design that allows it to function in any environment, no matter the size constraints.
FEATURES
Seiler Alpha Air 3 ENT Microscope Features
· Three-Step Turret magnification system.
· LED illumination + 150,000 LUX.
· 10x widefield eyepieces with dioptic locks.
· True Coaxial Illumination: Shadow Free.
· USB and 12 VDC power support directly on optic pod.
· Red free filter standard.
· Five Mounting Options Available: Floor, Wall, High Wall, Ceiling, and Tabletop.
· Two Head Options Available:┬áFixed 45┬░ Head or Inclinable 0 - 220┬░ Binocular Head.
Seiler Alpha Air 3 ENT Microscope Specifications
· Weight: 162 lb (73.48 kg).
· Working Distance:
o Minimum possible: 6.89" (175 mm).
o Maximum possible: 15.75" (400 mm).
· Microfocus Vertical Adjustment Range: 13 mm.
· Objective Lens:
o Standard Setup: ├åÔÇÖ=250 mm.
o Optional Setup: 175 - 400 mm.
· Eyepieces:
o Standard Setup: 10x.
o Optional Setup: 12.5x, 16x, 20x.
· Diopter Setting: -6 to +6.
· Field of Vision:
o Standard Setup: 9 - 72 mm.
o Optional Setup: 4.95 - 105.88 mm.
· Magnification Levels:
o Standard Setup: 2.8x, 4.8x, 5.3x, 8.7x, 11x, 17x.
o Optional Setup:
§ Max Low: 1.7x.
§ Max High: 48.5x.
· Power Supply: Mains Power 96 - 264 VAC; 47 - 63 Hz.
· Auxiliary Power Jack: 12 VDC 1.0 A maximum.
· Fuses: (2) 3 AMP 250 V Fast Blow 5x20 mm.
· Illumination Bulb: USB 2 Jack; 5.0 VDC; 1 AMP.
· Power Cable: IEC 320/C13 Hospital Grade.
· Light Source Type: LED.
· Color Temperature: 5700 CCT.
· LED Life: > 50,000 hours.
· Typical Illuminance: 120,000 - 150,000 LUX.
· Operating Temperature: 50┬░ F - 70┬░ F (10┬░ C - 25┬░ C).
· Storage Temperature: 38┬░ F - 122┬░ F (10┬░ C - 50┬░ C).
· Operating Relative Humidity: 30 - 75%.
· Storage Relative Humidity: 0 - 100% Non-Condensing.
· Air Pressure: 700 HPA to 1060 HPA.
CONFIGURATIONS
Seiler Alpha Air 3 ENT Microscope Configurations
· #AA3-ENT1-LED:┬áFloor Mounted Unit with Fixed Head.┬á
· #AA3-ENT2-LED: Wall Mounted Unit with Fixed Head.
· #AA3-ENT3-LED:┬áHigh Wall Mounted Unit with Fixed Head.
· #AA3-ENT4-LED:┬áCeiling Mounted Unit with Fixed Head.
· #AA3-ENT5-LED:┬áTabletop Mounted Unit with Fixed Head.┬á
· #AA3-ENT1-LED220:┬áFloor Mounted Unit with Inclinable Head.┬á
· #AA3-ENT2-LED220:┬áWall Mounted Unit with Inclinable Head.
· #AA3-ENT3-LED220:┬áHigh Wall Mounted Unit with Inclinable Head.
· #AA3-ENT4-LED220:┬áCeiling Mounted Unit with Inclinable Head.
· #AA3-ENT5-LED220:┬áTabletop Mounted Unit with Inclinable Head.
