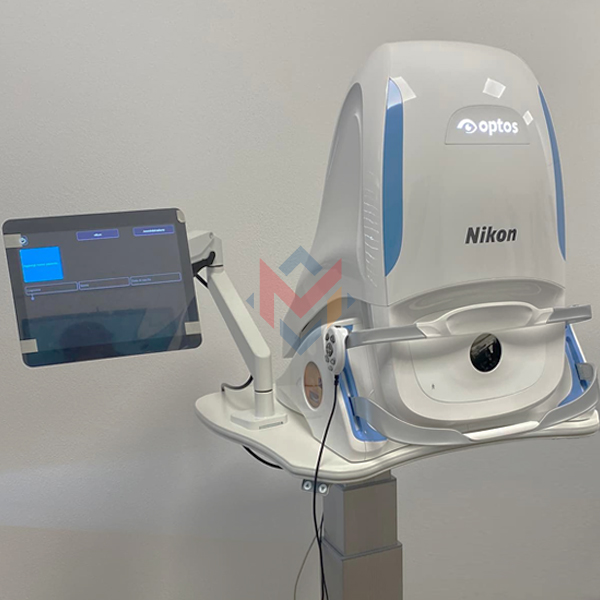

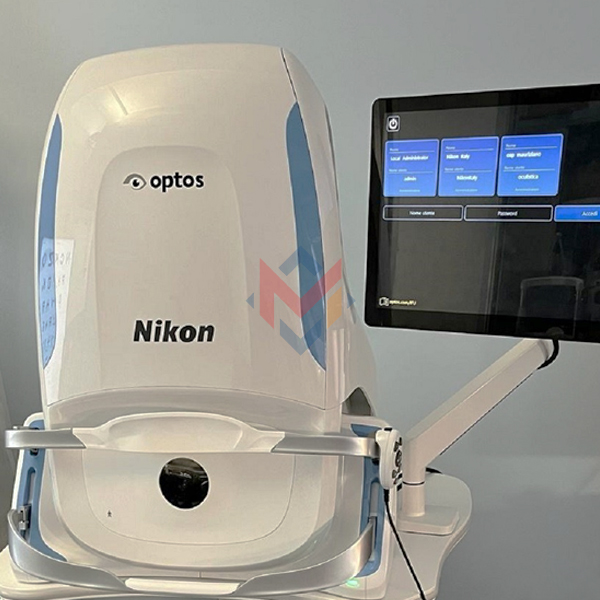

Nikon Optos Silverstone with SS OCT Optical Coherence Tomography (Used) - SALE!
Limited Stock With Limited Time Offer!
$14056.29$7794.37
Optos Silverstone is the most powerful tool yet for examining the retina. The only ultra-widefield retinal imaging device with integrated, UWF-guided swept source OCT, Silverstone produces a 200° single-capture optomap image in less than ½ second and enables guided OCT scanning across the retina and into the far periphery.
Imaging modalities and image viewing options are detailed below.
OPTOS SILVERSTONE BENEFITS
ü UWF with integrated swept-source OCT, facilitates detailed examination of the retina-vitreous to sclera
ü UWF guided, swept-source OCT, images pathology anywhere on the optomap
ü 1050 nm OCT light source, provides deeper tissue penetration for clear, detailed choroidal imaging
ü 3-in-1 Color Depth ImagingTM provides important clinical data from the retinal surface through the choroid
Silverstone Image Modalities
v optomap color and optomap plus (red and green laser):
o Color composite view
o Green laser view
o Red laser view
v optomap af (green laser): autofluorescence
v optomap fa (blue laser): fluorescein angiography
v optomap icg (infra-red): indocyanine green angiography
v Swept Source Optical Coherence Tomography (OCT
Resolution:
optomap color: 20 μm
optomap plus, af: 14 μm
Wavelengths:
Red laser: 635 nm
Green laser: 532 nm (for af )
Blue laser: 488 nm (for fa)
Infra-red: 802 nm (for icg)
Exposure Time: Less than 0.4 second
Tomographic Imaging:
Signal Type: Optical scattering from tissue
Signal Source: Swept source OCT, Wavelength 1050 nm
Optical Power: Laser safety Class-1 following IEC/en60825-1:2014(2007)Axial Resolution: <7 micron
Transverse Resolution: <20 micron (in tissue)
Scanners: Galavanometric with x, y pair
Scan Depth: Up to 2.5mm
OCT Scan Characteristics:
Swept Source OCT
A-Scan rate up to 100k cycles/s
OCT Scan Types:
Line Scan
Volume Scan
High Density Scan
Footprint:
Width: 540 mm/22 inches
Depth: 570 mm/23 inches (including chin rest)
Height: 683-707 mm/27-28 inches
